600um 900um G652D Armored Simplex Indoor Fiber Cable

Name: 600um 900um G652D Armored Simplex Indoor Fiber Cable
Brand: KNOFC
Price: 1 USD

China 600um 900um G652D Armored Simplex Indoor Fiber Cable wholesale

Brand Name : KNOFC

Model Number : GJSJV 1 Core

Certification : ISO9001/CE

Place of Origin : China

MOQ : 1km

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 600000M/Week

Delivery Time : 8-10 working days

Packaging Details : Wooden drum

Fiber type : SM / MM

Fiber brand : YOFC / Fiberhome / Corning

Fiber count : 1 Core

Cable OD : 3.0 mm / 4.0 mm

Protect layer : Kevlar yarn

Jacket material : PVC / LSZH

Armored : Spiral Steel Tube

Life expectancy : more than 30 years

Operating Temperature : -40°C to+70°C

Contact Now

GJSJV Indoor Armored Fiber Cable Simplex Fiber SM G652D G657A

Description:

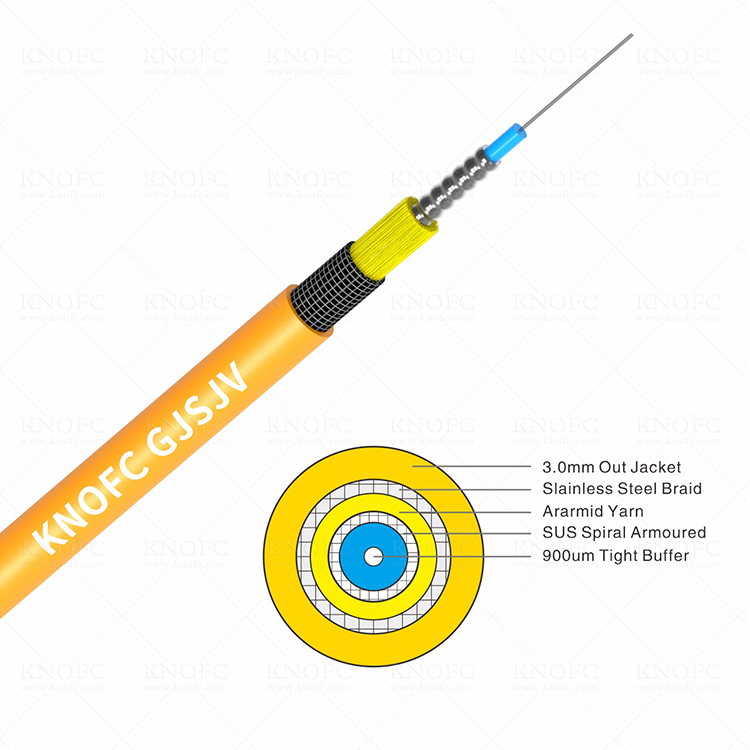

GJSJV Simplex Armored Round Cable use 600um&900um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding (kevlar /aramid yarn), flame-retardant jacket. High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.

Features:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Optical Fiber Characteristic:

Fiber Type	G.652D,125.0+-1.0μm
Mode Field Diameter	9.2+-0.2μm at 1310 nm
Cladding Diameter	125+-1μm
Cladding Non-Circularity	<=1%
Coating Diameter	245+-10μm
Attenuation Coefficient	<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion	<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength	1300-1322nm
PMD Coefficient	<=0.2ps/√km

Technical Parameters:

Cable type	Diameter (mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Crush Resistance Long/Short Term(N/100mm)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GJSJV-1	3.0	15	80/150	300/1000	20D/10D	-40~+70
GJSJV-1	4.0	19	80/150	300/1000	20D/10D	-40~+70

Application:

1. Used in pigtails and patch cords;
2. Used in optical connections in optical communication equipment rooms and optical distribution frames;
3. Used in optical connections in optical apparatus and equipments.
