ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable

Product Categories
Shenzhen Knofc Communication Co., Ltd.
Contact Now

ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable

  • 1
  • 2

Brand Name : KNOFC

Model Number : ASU80 12 Core

Certification : ISO9001/CE

Place of Origin : China

MOQ : 1km

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200000M/Week

Delivery Time : 8-10 working days

Packaging Details : Wooden drum

Fiber type : G652D or as your request

Fiber brand : YOFC / Fiberhome / Corning / KNOFC

Fiber count : 2-24 core

Strength member : 2*FRP

Protective layer : Water blocking tape

Outer sheath material : HDPE

Application : Aerial / Duct

Life expectancy : more than 30 years

Operating Temperature : -40°C to+70°C

Contact Now

ASU80 GYFXTY Fiber Optic Cable CFOA-SM-ASU-80-12FO Optic Fiber Cable

Description:

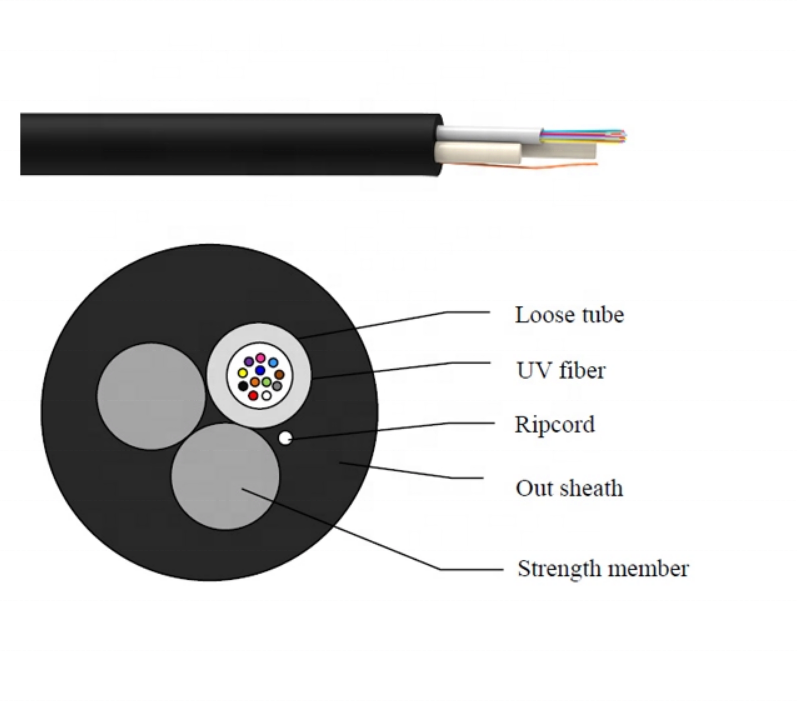

The optical fiber is put in a loose tube.The fiber can be 1-24 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. This cable has the fetures of small size and light weight. It help to save the shipping cost. Applicable for short span aerial and duct installation.

Characteristics:

  • Small Size and Ligth Weight.
  • Two FRP as strength member to provide good tensile performance.
  • Gel Filled or gel free , good waterproof performance.
  • Low price ,high fiber capacity.
  • Applicable for short span aerial and duct installation.

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
ASU80-2~24 8 70 600/1500 300/1000 20D/10D -20~+70

ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable


Product Tags:

HDPE Optic Fiber Cable



FRP Optic Fiber Cable



12FO Outdoor Fiber Optic Cable


China ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable wholesale

ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable Images
