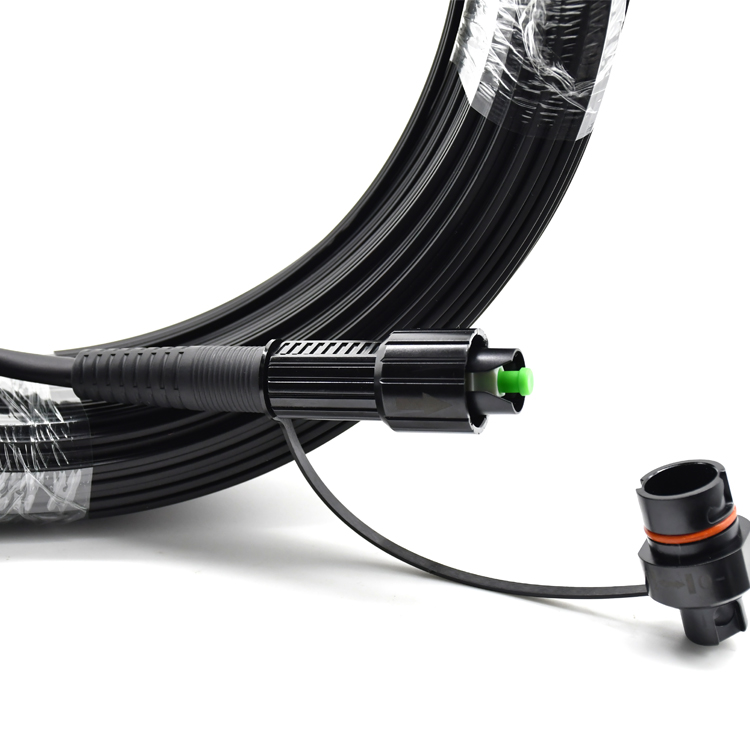

FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC

Name: FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC
Brand: KNOFC or OEM
Price: 1 USD

China FTTH Pre Connectorized Drop Cable Pigtail Mini SC APC wholesale

Brand Name : KNOFC or OEM

Model Number : Waterproof Mini SC Drop Cable Assembly Pigtail

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 60000pcs/Month

Packaging Details : Individual box or customized

Connector type : Huawei Mini SC APC

Cable type : round cable or drop cable

Length : 50M 100M 150M

Application : HUAWEI CPRI

Fiber type : G657A2 or as your request

Fiber brand : YOFC / Fiberhome / Corning / KNOFC

Jacket material : HDPE / LSZH / TPU

Operating Temperature : -40°C to+70°C

Contact Now

FTTH Outdoor Huawei Pre Connectorized Drop Cable Pigtail Mini SC

Description:

Huawei Compatible Mini SC pre-terminated Outdoor Flat drop cable pigtail provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.

Features:

Provides superior weather resistance for FTTA and other outdoor applications.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
Can be installs without special tooling.
Threaded style coupling.
Provides bend protection for installation and long term use.
Faster network roll out and customer installations.
100% tested assemblies built in a controlled environment.
Lower cost deployment by utilizing plug and play solutions.
Custom built solutions with quick turnaround times.

Application:

Fiber optic communications in harsh outdoor environments.
Outdoor communication equipment connection.
Waterproof Fiber Equipment.
Remote wireless Base Station.
FTTx ISP Project.

Connector technical data:

Items	Values
Connector Type	Huawei Mini SC
Insertion Loss	<0.3dB
Return Loss	>60dB

Cable technical data:

Item	Values
Cable Type	Outdoor Flat Drop Cable
Sheath Material	LSZH
Messenger Wire	1.0±0.02mm
Steel Wire	0.5±0.02mm
Fiber Type	G657A1 / G657A2
Cable Diameter	(2.0±0.1)x(5.0±0.2)mm

Cable Paremeters:

Cable type	Diameter(mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GJYXCH-1~4	2.0*5.0mm	22	300/600	20D/10D	-20~+70
