Home > Indoor Fiber Cable >

Multimode Duplex Fiber Optic Cable

Product Categories

Shenzhen Knofc Communication Co., Ltd.

Contact Now

Multimode Duplex Fiber Optic Cable

Name: Multimode Duplex Fiber Optic Cable
Brand: KNOFC
Price: 1 USD

China Multimode Duplex Fiber Optic Cable wholesale

Brand Name : KNOFC

Model Number : GJSJBV 2 Core

Certification : ISO9001/CE

Place of Origin : China

MOQ : 1km

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 600000M/Week

Delivery Time : 8-10 working days

Packaging Details : Wooden drum

Fiber type : SM / MM

Fiber brand : YOFC / Fiberhome / Corning

Fiber count : 2 Core

Cable OD : 2.0 mm*4.0 mm

Protect layer : Kevlar yarn

Jacket material : PVC / LSZH

Armored : Metal Tube

Life expectancy : more than 30 years

Operating Temperature : -40°C to+70°C

Contact Now

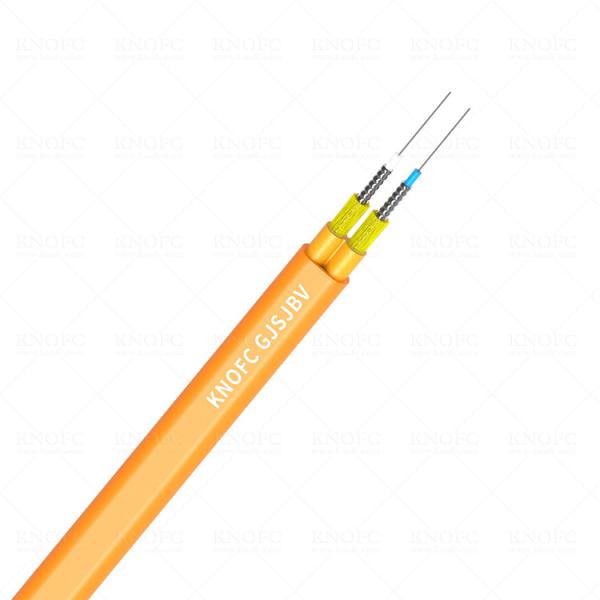

GJSJBV Indoor Armored Duplex Fiber Fiber Cable Multimode

Description:

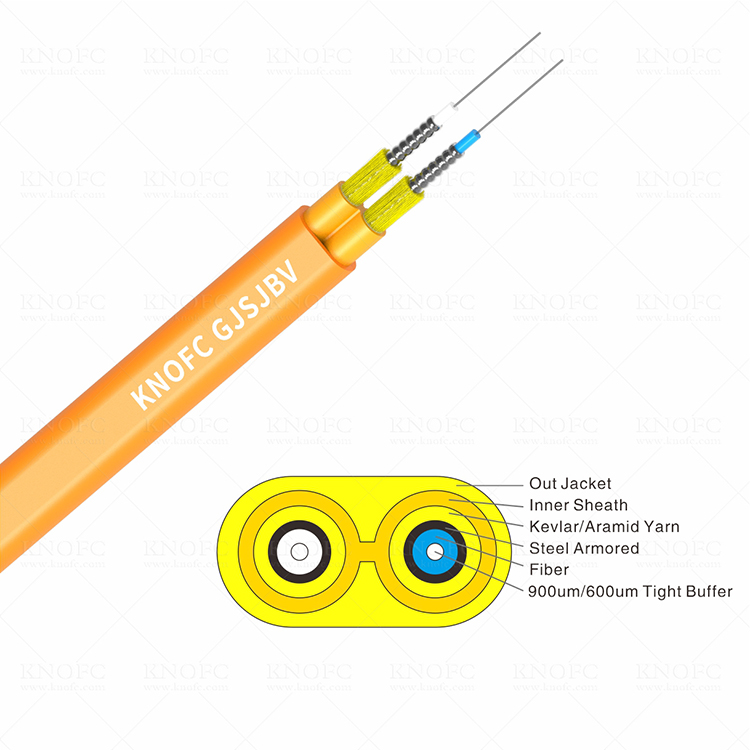

Duplex zipcord armored cable use 0.9mm or 0.6mm flame-retardant tight buffer fiber as optical communication medium.The tight buffer fiber wrapped with a layer of steel wire , and aramid yarn as strength member units,such unit is extruded with a layer of PVC or LSZH material as inner jacket.Then the cable is completed with a layer of flat PVC or LSZH (Low smoke,Zero halogen,Flame-retardant) or TPU jacket as out sheath .

Features:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Application:

1. Used in pigtails and patch cords;
2. Used in optical connections in optical communication equipment rooms and optical distribution frames;
3. Used in optical connections in optical apparatus and equipments.

Technical Parameters:

Cable type	Diameter (mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Crush Resistance Long/Short Term(N/100mm)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GJSJBV-1	2.0*4.1	21	160/300	300/1000	20D/10D	-40~+70
GJSJBV-1	2.8*5.7	35	160/300	300/1000	20D/10D	-40~+70

Multimode Duplex Fiber Optic Cable
